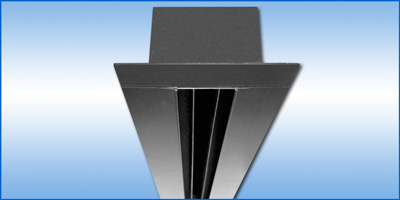

  Model Pro Jet - Architectural Linear Slot Diffusers


Application
  • Linear diffuser system with engineered performance that integrates inconspicuously as an architectural feature of the space
  • Long throw capability, single slot appearance
  • Jet discharge pattern perpendicular to the diffuser face for both heating and cooling applications
  • High ceiling applications to project conditioned air down walls
  • Sidewall applications to project air across the space as a free jet for rapid mixing or attach to the ceiling for increased throw distances
  • Supply, return, or exhaust air through the same continuous run of architectural linear eliminates ceiling clutter and reduces installation costs
  • Drywall / hard surface and suspended ceiling applications
Product Features
  • Heavy extruded aluminum construction
  • 12’ lengths available to minimize joints
  • 1”, 1-1/2”, 2”, 2-1/2”, 3” slot widths
  • 1 thru 4 slots
  • Field adjustable nozzle varies jet velocity and throw distance
  • Nozzles are nominal 24” and consist of two sliding elements for volume control as well as blank-off for inactive sections
  • Baked-on Arctic white frames Models PJSS, Baked-on black frames for Models PJCM & PJBF. Nozzles are black. Optional center T’s used on multiple slot units are arctic white
Options
  • For return units without pattern controllers, use Free Flo returns
  • Custom curving (non-adjustable) for wall or ceiling applications – convex or concave!
  • Mitered corners and end caps
  • Multiple slots
  • Custom color matching, anodized finishes

Balancing
Factors

IOM Manual




Submittals
Model Mounting
Slot Width
1" 1-1/2" 2" 2-1/2" 3"
PJS Surface Mounted
PJCM Concealed Mounting
PJBF Beveled Flange
PJL Lay-In T-Bar
PJ-L9 9/16"
Lay-In T-Bar
PJ-T9 9/16" Tegular Ceiling
PJ-DM Duct Mounted
PJ-T9B Combo 9/16" Tegular / Beveled Frame
PJ-W1 Flush Frame
PJ-SW1 Wall + Flanged
PJ-BW1 Wall + Mud/Beveled
PJ-T9S Combo 9/16"
Tegular /
Surface Frames
PJ-SB Combo
Surface / Beveled Frame
PJ-X 5/8" Offset FRAME
PJ-X 5/16" Reveal To Wall

Optional Features
Accessories Mitered
Corners
Curved
Reference
Sheets
Configurations
Model AD
Air Distribution Plenums
Stack Miter (inside) Flat Surface Application
Basic Linear Section / Run
Model LSS
Linear Diffuser Light Shield
Stack Miter (outside) Concave Curve Application
Configuration L
Model LINX
Linear Diffuser Connectors
Face Miter
(90° & 45°)

Convex Curve Application
Configuration S
Blank-Off Plate FFX Configuration 1 - Slot (All Sizes) Required Ceiling Opening
Configuration Z
Optional Screw Attachment   Useful Equations Configuration U
      Configuration R
      Configuration I
Sidewall Inside Corner
      Configuration O
Sidewall Outside Corner
      Diffuser End Cuts
