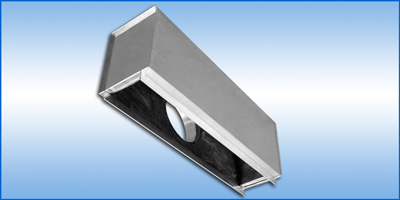

Model AD - Air Distribution Plenums |
|
| |
|
|
|
| |
Application
- Transition that provides means to connect round duct to linear diffusers
- Designed for use with ALL FreeFlo, ProJet, and SLAD series linear slot diffusers
- Can be pre-installed prior to linear installation (plenums always shipped separate from diffusers)
Product Features
- Nominal lengths of 24”, 36”, 48”, 60”, & 72”.
- Fits linear slot products from 1 to 8 slots, 1/2" thru 3" slot widths.
- Hemmed edge design interfaces with diffuser mounting hardware to speed installation
- Cross sectional area of plenum designed and sized to minimize directional effects of discharge pattern from the diffuser into the space
- Offset design allows for 1/2” insulation for smooth airflow into diffuser neck
- Zinc coated steel
Plenum Options
- Insulation treatments: 1/2” internal, 1/2” foil faced internal or external, closed cell “fiber-free” foam
- Locking quadrant inlet damper
- Aluminum or stainless steel construction
- Curved plenums to match curved linear supply diffusers and returns
|
|
|
 |
|
| Round Inlet Submittals |
| Model |
Frame
Type |
Slot Width |
| 1/2" |
3/4" |
1" |
1-1/2" |
2" |
2-1/2" |
3" |
| SLAD |
FS, PS, FL,
PL, D, W |
• |
• |
• |
• |
|
|
|
| Free Flo |
S, X, BF |
• |
• |
• |
• |
• |
• |
• |
| Pro Jet |
S, BF |
• |
• |
• |
• |
• |
• |
• |
| Free Flo |
CM |
|
|
• |
• |
• |
• |
• |
| Pro Jet |
CM |
|
|
• |
• |
• |
• |
• |
| TAZR-4, -6 |
ALL |
• |
• |
• |
• |
|
|
|
TAZR6
4-Slot |
L |
|
• |
|
|
|
|
|
| Lo-Profile, Oval Inlet Submittals |
| Model |
Frame
Type |
Slot Width |
| 1/2" |
3/4" |
1" |
1-1/2" |
2" |
2-1/2" |
3" |
| SLAD |
FS, PS, FL,
PL, D, W |
• |
• |
• |
• |
|
|
|
| Free Flo |
S, X, BF |
• |
• |
• |
• |
• |
• |
• |
| Pro Jet |
S, BF |
• |
• |
• |
• |
• |
• |
• |
| Free Flo |
CM |
|
|
• |
• |
• |
• |
• |
| Pro Jet |
CM |
|
|
• |
• |
• |
• |
• |
TAZR6
4-Slot |
L |
|
• |
|
|
|
|
|
|
| |
|
|
|
|
