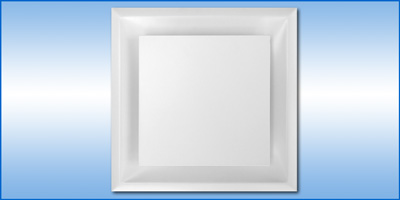

  Model PG - Paragon Plaque Diffuser


Application
  • Architecturally preferred diffuser appearance without sacrificing performance
  • Recommended for constant or variable air volume heating, cooling, or ventilating
  • 360° air pattern delivery maintains coanda effect even at low air flow rates and minimizes smudging

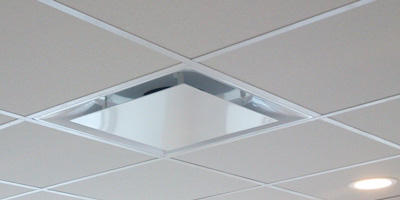

  • For surface mounting or use with suspended grid systems
Product Features
  • Center plaque has smooth, hemmed edges for rigidity and flat appearance
  • Steel construction
  • Plaque is assembled without welding or heat – no blemishes
  • Smooth outer cone is die stamped (no mitered corners) and contoured to minimize sound and pressure loss

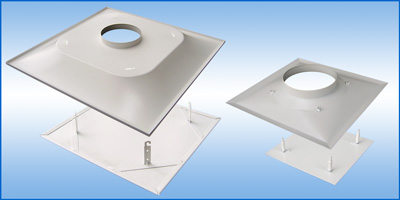

  • Removable plaque assembly without use of tools. 4 posts interlock into outer cone.
  • Arctic White baked-on finish
Options
  • Aluminum, or stainless steel construction
  • Model B5 blank-off baffles for directional control from 4-way to 3, 2, or 1 way blow – field installed
  • Custom or optional paint colors
  • Model VD butterfly volume control damper
  • Model TBF auxiliary mounting frame for hard / plaster ceilings
  • All aluminum construction for MRI applications
  • 30" x 30" Model PGD for 9/16" narrow slot grid systems

Features at a Glance






Submittals
Model Mounting Plaque
Drop
Size
12" x 12" 24" x 24" 24" x 12" 20" x 20" 30" x 30"
PGL 15/16" Lay-In T-Bar 1/8"
PGL 15/16" Lay-In T-Bar 1/2"
PGL9 9/16" Lay-In T-Bar 1/8"
PGL 15/16" Lay-In T-Bar,
Nominal
12x12 Face with Extensional Panel
1/8"
or
1/2"

PGF Surface Mounted 1/8"
PGF Surface Mounted 1/2"
PGD 9/16" Narrow Slot 1/8"
PGD 9/16" Narrow Slot 1/2"
PGT 15/16" Tegular 1/8"
PGT9 9/16" Tegular 1/8"
PGV Vector Ceiling 1/8"
PGH Metal Pan
(Snap-In)
1/8"
PGE Ecophon Focus™ 1/8"
PGX Lay-In T-Bar,
Nominal 12x12 Face with Extensional Panel
1/8"
or
1/2"

PGX Surface Mount,
Nominal 12x12 Face with Extensional Panel
1/8"
or
1/2"

PGC Concealed Spline / Grid 1/8"
PGQ Lo-Flow
(with Jet Nozzles)
ALL 1/8"
PGFM-L
FILTERED DIFFUSER
Lay-In T-Bar 1/8"
Submittals - MRI Applications
Model Mounting Plaque
Drop
Size
12" x 12" 24" x 24" 24" x 12" 20" x 20" 30" x 30"
PGL-22-MRI Lay-In T-Bar 1/8"
PGF-22-MRI Surface Mounted 1/8"
PGD-22-MRI 9/16" Narrow Slot 1/8"
Accessories
VD - Butterfly Volume Control Damper
TBF - T-Bar Mounting Frame
LD - Combo Louver Damper
CED - Equalizing Deflector
R6 - Molded Insulation Blanket
B5 - Blank-Off Baffles
EQ - Earthquake Tabs
