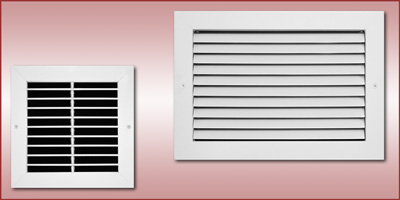

| Model 30 / 35
Application
- Recommended for general return or exhaust of room air
- 0° or 45° fixed blade deflection maximizes free area for low pressure loss and sound levels
- Potential line of sight into duct thru grille is acceptable
- Typically installed in a sidewall, duct, or ceiling
Product Features
- Fixed blade return / exhaust grilles and registers exceeding the industry standard using heavy, 20 gauge steel frames
- Aerodynamic blade design resulting in lowest achievable sound and pressure levels
- 3/4" or 1/2" blade spacing
- Blades selected as horizontal or vertical for visual effect
- Registers include a factory attached, steel opposed blade volume control damper
- Mounting holes in frame neatly countersunk for supplied #8 x 1-1/2" oval head screws
- Arctic White baked-on finish
- Maximum size one piece construction is 48" x 48". Larger sizes shipped in multiple sections for field assembly.
Options
- 304 or 316 stainless steel construction with satin polish finish
- Factory applied gasket material to frame
- Aluminum or stainless steel opposed blade volume control dampers
- Custom or optional paint colors
- Filler panels for lay-in grid applications
|
|
|
 |
|
