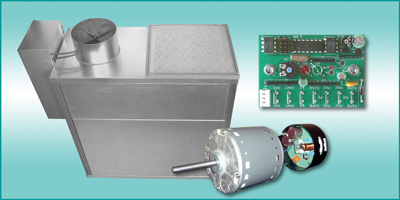

  Model EST - Series Energy Smart - ECM

Model ESTS
Series Basic Assembly, ECM


  • Series type fan assisted air terminals with reduced operating costs by up to 65% over conventional PSC motor driven fan terminals means fast payback period.
  • Maintain space temperature with constant air flow level to the space throughout the operating range for high levels of thermal comfort. Fan airflows can be remotely adjusted to meet seasonal needs.
  • Energy reclamation from warmer ceiling plenum during heating cycles.
  • Improved air quality with high levels of air motion for significant occupant comfort.
  • Control strategies using pneumatic, analog, or direct digital control (DDC) systems.
  • Complete air terminal remote control including fan flows when used with DDC systems.
Product Features
  • Electronically Commutated Motors (ECMs) using brushless DC motor technology for energy reductions up to 65% as compared to PSC motors. 120, 240 or 277 VAC, 1ø.
  • Easy to install and service – all controls located in one convenient location for single point electrical connection. Motor electronics can be replaced without removing the motor from the fan assembly.
  • Four models provide required horsepower ranges for optimizing energy savings
  • Ultra-Quiet, 18 & 20 gauge steel design for rigidity and demanding noise criteria specifications. Standard terminal includes an acoustical attenuator – not an “add on” accessory!!
  • 1" dual density thermal / acoustic internal insulation (NFPA 90A & UL 181)
  • AHRI 880 certified performance / ETL listed
  • Factory Programmed - pressure independent fan flow means Fan CFM can be reliably preset – a significant reduction in field labor to balance and adjust the “system”, without accessing the ceiling plenum.
  • ECMs and stored programs are unaffected by power irregularities such as short interruptions or under-voltage conditions.
  • Flow curves attached to each terminal for both the inlet sensor and motor.
  • Intelligent fan motor circuitry for remote fan flow control via DDC systems (BMS).
  • A-Pulse speed controllers with various features to meet specific project requirements may include visual LED flow indicators, inputs, outputs, and RPM feedback loops.
  • Backward fan rotation issues related to start-up sequencing is eliminated.
  • Swing-down fan access panel
  • Steel control enclosure, screw attached cover. Left hand position is standard.
  • 90° inlet damper & perimeter seal limiting leakage to <1% of max rated flow at 3" w.g. inlet static pressure.
  • Patented Velocity Wing primary flow sensor measures flow to ±5% accuracy regardless of inlet conditions. Highest velocity pressure amplification means high turn down with high accuracy.
  • Accepts flanged discharge duct connection
  • A-Pulse fan flow controller choice:
  • Manual flow adjustment with screwdriver ,On-Off control, and flow indicating lamp
  • 0-10 vdc input from DDC controller, On-Off control, and flow indicating lamp
  • Manual digital control unit with two ten digit rotary switches
  • Manual selection of 4 factory pre-programmed flow rates, jumper or switch selected.
  • 1" Throw-Away Induction Filter
  • Internal liners including: Foil laminated, fiber free insulation; dual wall construction; low temperature applications.
  • Model Q5 radiated sound elbow
  • Pneumatic, Analog, or Direct Digital control packages
  • Unit mounting brackets (field installed)
  • Hinged front control enclosure cover
  • Slip & drive cleat discharge collar
  • Electrical component options – line voltage disconnect switch, power fusing, electric damper actuator (24vac) for use with DDC controls, 24vac step down transformer
  • Digital, analog, or pneumatic control systems

Model ESTW
Series Hot Water Heat, ECM


  • Series type, fan assisted air terminals with integral hot water heating coil
  • Provide hot water heating to perimeter spaces during occupied periods and night shut down modes. Night cycling temperature control with central fan systems shut down.
Product Features

Same as Model ESTS plus:

  • 1 or 2 row hot water coils
  • 1/2" O.D. copper tubes, .016" wall thickness, mechanically expanded in fins. Manifolds are minimum .028" wall thickness.
  • Aluminum corrugated fins with rippled edges, .0055" thick, 10 per inch.
  • Designed for maximum heat transfer and low water pressure drops using single and multi-circuited designs.
  • Performance data per AHRI Standard 410
  • Factory pressure tested for leaks at 300 psi, burst tested at 450 psi, ambient temperatures.
  • 20 gauge galvanized sheet metal casing with 18 gauge end plates
  • “Slip & Drive” connection provided for metal discharge duct connection
  • Connections are male solder headers.

Same as Model QSTS plus:

  • Right hand or left hand coil connection – factory configured
  • Coil clean-out access door
  • “Steam” construction available. Contact your local Anemostat representative.

Model ESTE
Series Electric Heat, ECM


  • Series type, fan assisted air terminals with integral electric heating coil
  • Provide electric resistance heating to perimeter spaces during occupied periods and night shut down modes. Night cycling temperature control with central fan systems shut down.
Product Features

Same as Model ESTS plus:

  • Integral electric heating coil with nickel-chrome resistance wire
  • Primary, auto reset thermal cutout
  • Air flow switch for proof of air flow
  • 24vac Class II transformer (unfused) as required for 24vac control systems
  • PE switches for pneumatic control systems
  • Magnetic de-energizing contactor per step
  • Accepts flanged discharge duct connection
  • Left hand control and heater cabinet position are standard

Same as Model ESTS plus:

  • Door interlocking disconnect switch, non-fused
  • Power fusing (fuses & fuse blocks)
  • Manual reset secondary thermal cutout
  • SSR modulating controller
Air Flow

Typical Specifications

Control Packages Selector

Analog & DDC
Control Packages

Control Packages
Product Details
Model Product
Fan Curves /
Amp Draw
Heating Coil
ESTW Hot Water
ESTE Electric
Model Features
ESTS Series Fan Terminal, Standard
ESTW Series Fan Terminal with
Hot Water Heat
ESTE Series Fan Terminal with
Electric Heat
ESTS-DOAS Series Fan Terminal with
Sensible Cooling Coil (DOAS)
ESTW-DOAS Series Fan Terminal with
Hot Water Heat and
Sensible Cooling Coil (DOAS)
ESTE-DOAS Series Fan Terminal with
Electric Heat and
Sensible Cooling Coil (DOAS)
EST-DOAS Chilled Water Coil Capacity
A-Pulse Controllers - Submittal
A-Pulse Controllers - Technical Bulletin
Optional Features
C1/KIT Hanger Brackets
Field Installed Hanger Bracket - Recommended Locations
ENCLOSURE Optional Bottom Control Enclosure
