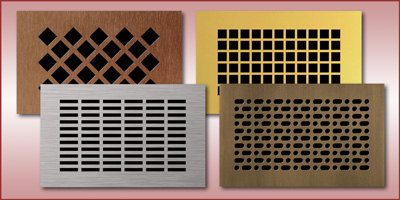

Model SAG - Architectural / Decorative Grilles             Application Model SAG Architectural / Decorative grilles provide a high end appearance providing an artistic splash to showcase your space. Integrate into renovation projects of historical spaces. Supply or Return air applications for use in heating, cooling, or ventilation air systems. Grille air discharge angle is 0°. Product Features Custom fabricated to size desired. Larger sizes can be manufactured in sections. Steel, Stainless Steel, Aluminum, Brass, Bronze metals in varying thickness. Painted, polished, oxidized, anodize finishes available (material dependent). Many patterns to choose from. Custom patterns can be created by you or us. Options Integrate decorative face with a single or double deflection grille / register. Screw holes for mounting. Countersunk or clearance holes (thickness dependent). Duct collar. Model OB-1 Volume Control Damper (Opposed Blade).     Product Description Product Selection Guide Typical Specification Optional Finishes         Submittals Model Description PDF File SAG Architectural Grille • SAG-10 Architectural Grille Single Deflection Supply • SAG-20 Architectural Grille Double Deflection Supply • Accessories OBD - Opposed Blade Volume Control Damper Round Patterns Pattern Pattern Description Free Area PDF File P5 5/32" Dia Holes on 7/32" Centers 46% • P6 3/16" Dia Holes on 9/32" Centers 40% • P7 3/16" Dia Holes on 1/4" Centers 51% • P8 1/4" Dia Holes on 3/8" Centers 40% • P9 5/16" Dia Holes on 7/16" Centers 46% • P10 7/16" Dia Holes on 11/16" Centers 37% • Lattice Patterns Pattern Pattern Description Free Area PDF File P1 9/16" Square Holes on 11/16" Centers 67% • P2 13/16" Square Holes on 1" Centers 66% • P3 2" Square Holes on 2-1/2" Centers 64% • P4 2" Square Holes on 3" Centers 44% • P11 1/2" Square Holes on 5/8" Centers 64% • P16 3/4 Square Holes on 1" Centers 56% • P17 1/2" Square Holes on 3/4" Centers 44% • Decorative Patterns Pattern Pattern Description Free Area PDF File P12 Dash-Dot 43% • P13 School Slot 1" x 3/16" 42% • P14 Diamond 3/4" Square on 1" Centers 56% • P15 Rectangular Cane 51% • P18 Square Link 1" 38% • P19 1/8" Dia Holes on 3/16" Centers (Purchased) 40%   P20 Square Link 1-3/4" 46% • P21 Parquest 1-3/16" 30%% • P22 Square Link 2-1/4" 52% • P23 Gothic 1-1/16" 54% • P24 Brick 1" x 1/4" 40% • P25 Brick 1" x 3/8" 48% • P26 Wobble 1" 58% • P27 Wobble 3/4" 50% • P28 Wobble 1/2" 38% • P29 Clover Patch 1-1/4" 32% • P30 Crosslink 1-1/2" 39% • P31 Windsor 2" 55% • P32 Royal 1-7/8" 62% • P33 Clover 3/4" 44% • P34 Teardrop 75% • P35 Circlelink 2-1/4" 42% • P36 Starlight 1-7/16" 46% • P37 Lightning 1-7/8" 54% • P38 Majestic 2-3/4" 69% • P39 Majestic 3-1/2" 59% • P40 Majestic 1-9/16" 66% • P41 Cathedral 2-1/2" 39% • P42 Petals 1-7/8" 72% • P43 Cloverleaf 1" 41% • P44 Cloverleaf 1/2" x 1/4" 42% • P45 Cloverleaf 1/2" x 3/16" 36% • P46 Diamond 1/4" 24% • P47 Diamond 1/2" 43% • P48 Egyptian 2" 50% • P49 Halfshell 1-5/16" 49% • P50 Maltese 1-3/4" 41% • P51 Honeycomb 1-3/8" 55% • P53 Chainlink 54% • P54 Seashell 1-1/8" 56% • P55 Crossgrid 47% • P56 Pinwheel 45% • P57 Pill 49% • P58 Bullet 41% •
