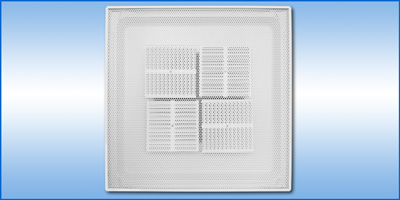

  Model CG - Perforated Diffuser with Face Mounted Pattern Controllers


Application

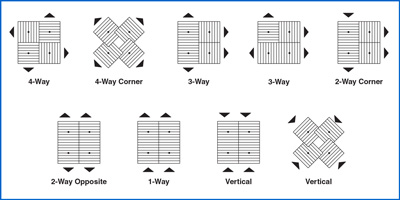

  • Perforated supply diffuser with adjustable discharge pattern controllers attached to face that are easily configured for 1, 2, 3, or 4 way horizontal air discharge pattern or vertical projection to meet changing space needs
  • Exhibits excellent VAV performance maintaining a horizontal pattern for the entire operating range
  • Applicable to heating, cooling, and ventilation of spaces
Product Features
  • Arctic white unit including face, backpan, and controllers
  • Removable face for cleaning, pattern, or volume adjustment
  • Face pattern is 3/16” dia holes on 1/4” centers – 50% free area.

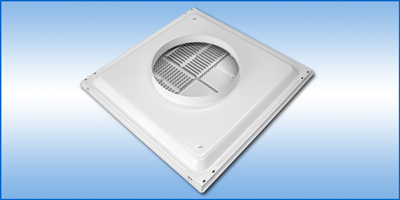

  • Round or square necks
  • Earthquake loops
Options
  • Aluminum or stainless steel face
  • Butterfly volume damper (round neck)
  • Opposed blade volume control damper (square neck)
  • Equalizing Deflector
  • Square to round duct adapter
  • Black backpan and controllers


Features at a Glance




Submittals
Model Feature Mounting
CG-L Round
&
Square
Necks
Lay-In T-Bar
CG-F Surface Mounted
CG-D 9/16" Narrow Slot
CG-T Tegular
CG-C Concealed Spline

Accessories
OBD - Opposed Blade Volume Control Damper
SRA - Square to Round Adapter
VD - Butterfly Volume Control Damper
LD - Louver Damper
TBF - T-Bar Mounting Frame
CED - Equalizing Deflector
