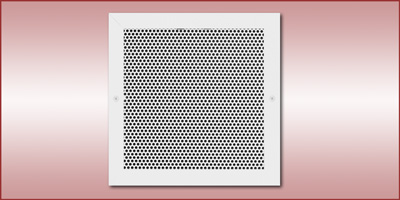

  Model 3P - Perforated Returns



Application

  • Surface mounted perforated return / exhaust grille
Product Features
  • Face pattern with 3/16" diameter holes on 1/4" centers with 51% free area
  • Mounting holes in frame neatly countersunk for supplied #8 x 1-1/2" oval head screws
  • Registers include a factory attached, steel opposed blade volume control damper
  • Aluminum models constructed from extrusion
  • Arctic White baked-on finish
  • Maximum size is 48" x 48" in one piece construction. Sizes over 48" are shipped in multiple sections for field assembly
Options
  • Steel, aluminum, or stainless steel construction
  • Filter grille option
  • Custom or optional paint colors
  • Factory applied gasket material to frame
  • Aluminum opposed blade volume control dampers

Features at a Glance




Submittals
Model Mounting Features Material
Aluminum Steel Stainless
Steel
3P Surface Mounted
Lay-In
T-Bar
Without Screw Holes
Surface Mounted Hinged Filter Grille, 1" Filter
Surface Mounted Hinged Filter Grille, 2" Filter

Accessories
OBD - Opposed Blade Volume Control Damper
SRA - Square to Round Adapter
LS - Light Shield
RSA - Return Sound Attenuator
