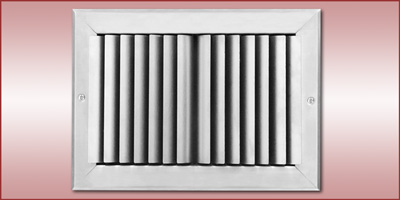

  Model SS1C - Stainless Steel Curved Blade Grilles


Application
  • Harsh environments dictating stainless steel performance
  • Recommended for constant or variable air volume heating, cooling, or ventilating
  • Specific throw patterns to match room configuration – adjustable blades allow proportioning of air in specific directions
  • Air discharge pattern adjustable for throw distance / direction
  • Ceiling or sidewall installation
  • Surface mounted or suspended grid systems
Product Features
  • 304 Stainless Steel
  • 9 specific patterns for 1,2,3, & 4 way discharge directions
  • 20 gauge frame
  • Individually adjustable blades tensioned by polymer bushings
  • 3/4" blade spacing
  • Registers include a factory attached, face-operated stainless steel opposed blade volume control damper
  • Mounting holes in frame neatly countersunk for supplied stainless steel oval head screws
  • Satin polished frame and blades
  • Maximum size one piece construction 36" x 36"
Options
  • 316 Stainless Steel
  • Model SSTBF Stainless Steel T-Bar Frame
  • Aluminum or coated steel opposed blade volume control dampers
  • Custom or optional paint colors

Features at a Glance

Submittals
Mounting
Surface Mounted
