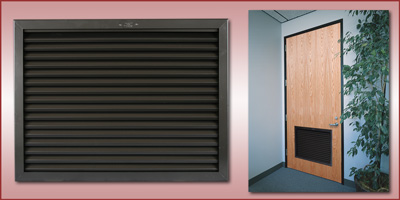

  Door Grilles / Louvers


Wall/Door Grilles

Product Features

CHDL-1F (Inverted V, frame one side)
  • 18 GA. Frame, 22 GA. Grille Blades
  • Installs with stops on one side and a flange that screws into the face of the door on the opposite side
  • Vision proof
DRDL (Double Inverted V, Darkroom)
  • 18 GA. Frame, 20 GA. Grille Blades
  • Installs with screws directly into the door
  • For Darkroom applications where light cannot be present
  • Flat black finish reduces light transmission.
FDLS (Inverted Split Y)
  • 18 GA. Frame and Grille Blades
  • Installs by means of sheet metal or wood screws directly into the door
  • Will fit any door thickness over 1-1/8"
  • Vision Proof
Special Features
  • Arctic White baked-on finish (DRDL flat black)
  • Custom Baked Enamel Colors (Color/Wood Stained Chip required for paint match)
  • Security Screw Fasteners
  • Mesh Screens
  • #304, or #316 Stainless Steel #4 Finish (satin)
  • Galvanized Sheet Metal
  • Aluminum #5052 (mill finish or anodized)
NOTE: For Exterior use, High Humidity or Salt Air Application, product must be Galvanized or Stainless Steel.

Core Only Grilles

Product Features

AFDL-T (Inverted Y, core only)
  • 18 GA. Frame, 22 GA. Grille Blades
  • For a 1 3/4" Door (1 3/8" is available)
CHDL (Inverted V, core only)
  • 22 GA. Grille Blades
  • Installs with stops on both sides
  • Ideal for use with Transoms or Wood Doors
Special Features
  • Arctic White baked-on finish
  • Custom Baked Enamel Colors (Color/Wood Stained Chip required for paint match)
  • Security Screw Fasteners
  • Mesh Screens
  • #304, or #316 Stainless Steel #4 Finish (satin)
  • Galvanized Sheet Metal
  • Aluminum #5052 (mill finish or anodized)
NOTE: For Exterior use, High Humidity or Salt Air Application, product must be Galvanized or Stainless Steel.

Door Grilles

Product Features

AFDL (Inverted Y)
  • Our top seller fastens the auxiliary frame to the grille core, thru the cutout in the door, eliminating the need to drill holes in the door.
  • 18 GA. Frame, 22 GA. Grille Blades
  • For a 1 3/4" Door (1 3/8" is available)
  • CHDL-2F (Inverted V, frame both sides)
  • 18 GA. Frame, 22 GA. Grille Blades
  • Installs by means of screwing directly into the door
  • Vision proof
FLDL-U.L. (Fire Rated with U.L. label/BS 476.22)
  • Fire rated door grille up to 90 min.,
    Max. size 24 x 24
  • 18 GA. Frame and Grille Blades
  • Self Attaching installation (see AFDL)
  • Stainless steel operating springs assure proper action when the 160° fusible link releases the closing mechanism
ADL (Adjustable Z Blade)
  • 18 GA. Frame and Grille Blades
  • Self Attaching installation (see AFDL)
  • For use in applications when an adjustable grille is required, but need not be fire rated
Special Features
  • Arctic White baked-on finish
  • Custom Baked Enamel Colors (Color/Wood Stained Chip required for paint match)
  • Security Screw Fasteners
  • Mesh Screens
  • #304, or #316 Stainless Steel #4 Finish (satin)
  • Galvanized Sheet Metal
  • Aluminum #5052 (mill finish or anodized)
NOTE: For Exterior use, High Humidity or Salt Air Application, product must be Galvanized or Stainless Steel.

Features at a Glance




Submittals
Model Features
AFDL Inverted "Y" Grille
FDLS Fixed Door Grille
ADL Adjustable Door Grille
FLDL-UL Fusible Link Door Grille
CHDL Inverted "V" - Core Only
CHDL-1F Inverted "V" Core with Frame one side only
CHDL-2F Inverted "V" Core with Frame both sides
DRDL Darkroom Grille
