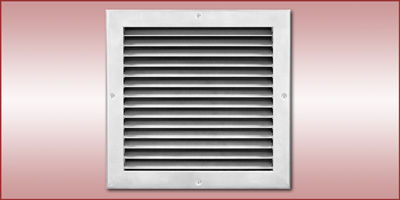

  Model 30 / 35- Stainless Steel Return Grilles


Application
  • Harsh environments dictating stainless steel performance
  • Recommended for general return or exhaust of room air
  • Typically installed in a sidewall, duct, or ceiling. Ideal for low sidewall use in operating room systems.
Product Features
  • 304 Stainless Steel
  • Fixed blade return / exhaust grilles and registers exceeding the industry standard using heavy, 20 gauge steel frames
  • 0° or 45° fixed blade angle
  • 3/4” blade spacing
  • Registers include a factory attached, face-operated stainless steel opposed blade volume control damper
  • Mounting holes in frame neatly countersunk for supplied stainless steel oval head screws
  • Satin polished.
  • Maximum size one piece construction is 60” x 48”. Larger sizes available.
Options
  • 316 Stainless Steel
  • White baked-on paint
  • Custom or optional paint colors
  • 1/2" blade spacing available

Features at a Glance




Submittals
Model Blade
Spacing
Blade
Deflection
Material
Stainless Steel
Surface Mounted
30 3/4"
45°
35 1/2"
45°
Lay-In T-Bar
30 3/4"
45°
35 1/2"
45°
