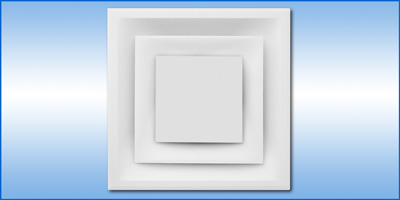

  Model Z - Square 3 Cone Architectural Diffuser


Application
  • Recommended for constant or variable air volume heating, cooling, or ventilating
  • 360° air pattern delivery maintains coanda effect even at low air flow rates and minimizes smudging
  • Surface mounted or suspended grid systems
Product Features
  • Die stamped cones – no mitered corners
  • Uniform, 3 cone appearance regardless of neck size
  • Removable inner cone assembly without use of tools
  • Optional damper access through center hole with plug button
  • Arctic White baked-on finish
Options
  • Steel, aluminum, or stainless steel construction
  • Custom or optional paint colors
  • Inner cone deflectors (-D) to proportion air discharge quantity
  • Model VD butterfly volume control damper
  • Model TBF auxiliary mounting frame for hard / plaster ceilings
  • All aluminum construction for MRI applications

Model ZPLA / Z1-A
Adjustable Horizontal to Vertical Pattern

Application

  • Recommended for constant or variable air volume heating, cooling, or ventilating
  • Field adjustable air delivery pattern from horizontal to vertical air projection for heating-cooling applications
  • 360° air pattern delivery maintains coanda effect even at low air flow rates and minimizes smudging in horizontal pattern setting
Product Features
  • Die stamped cones – no mitered corners
  • Integral pattern deflectors rotate to adjust air pattern
  • Uniform, 3 cone appearance regardless of neck size
  • Removable inner cone assembly without use of tools
  • Optional damper access through center hole with plug button
  • Arctic White baked-on finish
Options
  • Steel or aluminum construction
  • Custom or optional paint colors
  • Model VD butterfly volume control damper
  • Model TBF auxiliary mounting frame for hard / plaster ceilings


Balancing
Factors

Optional Finishes




Submittals
Model Features Mounting
Size
24 x 24
ZPL   Lay-In
T-Bar
ZPL-D Pattern
Deflectors
Lay-In
T-Bar
ZPLA Horizontal to Vertical Pattern Lay-In
T-Bar
ZPD   9/16" Narrow Slot
ZPD-D Pattern
Deflectors
9/16" Narrow Slot
Z-1   Surface Mounted
Z1-D Pattern
Deflectors
Surface Mounted
Z1-A Horizontal to Vertical Pattern Surface Mounted

Accessories
VD - Butterfly Volume Control Damper
TBF - T-Bar Mounting Frame
LD - Combo Louver Damper
CED - Equalizing Deflector
R6 - Molded Insulation Blanket
