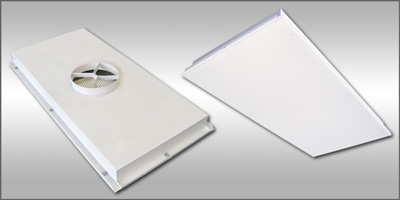

  Multi-Vent - MV1 Single Chamber Laminar Flow Panels


Application
  • Laminar flow panel to provide a source of clean air over critical work envelopes
  • While no ceiling air panels that are designed for applications where clean air control is essential can match the performance aspects of the MV-2 dual chamber product, the MV-1 serves as an economical substitute
  • Panels can be utilized individually to cover smaller, critical areas, or built-up into an array of multiple panels covering large areas
Product Features
  • Single chamber design provides vertical projection of air over critical work areas.
  • Perforated face is 13% open, and removable via 1/4 turn fasteners for cleaning
  • Face is hinged and swings down 90° for easy cleaning. Safety cables prevent face from accidentally swinging down.
  • Balancing damper adjustable from panel face through hole with removable plug
  • Closed cell gasket prevents leakage around face
  • Available for lay-in T-bar or hard surface ceiling systems
Options
  • Steel, aluminum, or stainless steel construction
  • White, baked epoxy finish, satin polish (stainless steel).
  • Contact factory for anodize finish options

Battens

Optional
Finishes




Submittals
Model Features
MV-1T Single Chamber - Lay-In T-Bar
MV-1P Single Chamber - Hard/Plaster Ceiling
Battens Arrangements
Slip-On Battens
MVB-P Blank-Off Panel, Perforated
MVB-S Blank-Off Panel, Solid
