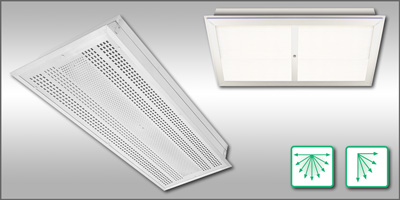

  Model HCRF - High Capacity Radial Diffusers with HEPA Filter


Application
  • Ceiling diffuser with a radial air discharge pattern where “room-side replaceable” HEPA or ULPA filters are required.
  • Rapid jet velocity decay - short throws
  • Intrusive radial pattern baths critical areas in continuous supply of clean air and lowers the concentration of airborne particles / contaminants
  • High ventilation rates with occupant comfort
  • Use in high air change spaces such as labs, pharmaceutical manufacturing, animal rooms, and industrial applications
Product Features
  • Installs flush to the ceiling as a single, fully gasketed module – no field assembly required
  • 180° & 90° radial patterns available for design flexibility
  • Unique, manually adjustable pattern controller to “fine tune” pattern based on design air flow rate, cooling differential, and application
  • Filter interface includes knife edge into filter gel seals for zero leak performance
  • Pressure port to measure filter static pressure drop
  • Removable face via 1/4 turn fasteners for cleaning
  • Face is hinged and swings down 90° for easy cleaning. Safety cables prevent face from accidentally swinging down.
  • Closed cell gasket prevents leakage around face
  • Available for lay-in T-bar or hard surface ceiling systems
Options
  • Light Alert Filter Monitoring System
  • Aerosol injection system and concentration ports integral with unit to simplify field verification and certification
  • Balancing damper
  • Steel, aluminum, or stainless steel construction
  • White, baked epoxy finish, satin polish (stainless steel).
  • Contact factory for anodize finish options
  • Magna-Pak HEPA filters with anodized aluminum framing to precisely fit the HCRF unit (Magna-Pak filters)
  • End/Side inlet locations

Magna-Pak
HEPA Filters

Features at a Glance




Submittals
Model Features
HCRF-T Lay-In T-Bar
HCRF-P Hard/Plaster Ceiling
Battens Arrangements
Slip-On Battens

Grid System
Model THD-1500 - Ceiling Grid System, 1-1/2" T-Beams

Model HCRF - Optional Features & Accessories
ANEM-HF - HEPA Filter
Light Alert
LA-24 - Light Alert Power Supply
Light Alert - Typical Wiring Diagram
Light Alert Monitoring - BMS Interface Wiring Diagram
