Application

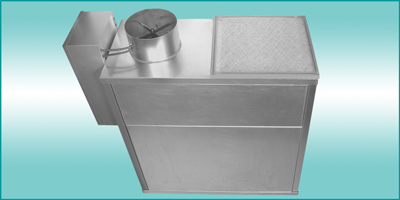

• Series type, fan assisted air terminal proportions primary air and ceiling plenum air
• Maintain space temperature with constant air flow delivery to the space throughout the operating range for high levels of thermal comfort.
• Energy reclamation from warmer ceiling plenum during heating cycles.
• Improved air quality with high levels of air motion for significant occupant comfort.
• Control strategies using pneumatic, analog, or direct digital control (DDC) systems

• Efficient, 3 Speed motor (permanent split capacitor) with thermal overload protection allows horsepower change for greatest potential of energy savings. 120 or 277 vac, 1ø
• Solid state speed controller with factory calibrated minimum voltage setting for precision air flow adjustment.
• Ultra-Quiet, 18 & 20 gauge zinc-coated steel design for rigidity and demanding noise criteria specifications. Standard terminal includes an acoustical attenuator – not an “add on” accessory!!
• 1" dual density thermal / acoustic internal insulation (NFPA 90A & UL 181)
• Easy to install and service – all controls located in one convenient location for single point electrical connection.
• Swing-down fan access panel
• Steel control enclosure, screw attached cover. Left hand position is standard.
• 90° inlet damper & perimeter seal limiting leakage to <1% of max rated flow at 3" w.g. inlet static pressure.
• Patented Velocity Wing primary flow sensor measures flow to ±5% accuracy regardless of inlet conditions. Highest velocity pressure amplification means high turn down with high accuracy.
• AHRI 880 certified performance / ETL listed (UL 1995).
• Accepts flanged discharge duct connection

• Model Q5 radiated sound elbow
• Hinged front control enclosure cover
• Internal Insulation - 1/2" or 1" foil-faced glass fiber insulation with metal taped edges meeting ASTM C665, double wall construction, Lo-Temp casing construction, 3/8” fiber free closed cell foam insulation, no insulation, see page A-11.
• Slip & drive cleat discharge collar
• 1” Throw-away filter & filter rack
• Unit mounting brackets (field installed)
• Electrical component options – line voltage disconnect switch, power fusing, 3-speed manual motor selector switch, electric damper actuator (24vac) for use with DDC controls, fan relay for on-off function, 24vac step down transformer
• Digital, analog, or pneumatic control systems

Application

• Series type, fan assisted air terminal with integral hot water heating coil
• Provide hot water heating to perimeter spaces during occupied periods and night cycling temperature control with central fan systems shut down

Same as Model QSTS plus:

• 1 or 2 row hot water coils
• 1/2" O.D. copper tubes, .016" wall thickness, mechanically expanded in fins. Manifolds are minimum .028" wall thickness.
• Aluminum corrugated fins with rippled edges, .0055" thick, 10 per inch.
• Designed for maximum heat transfer and low water pressure drops using single and multi-circuited designs.
• Performance data per AHRI Standard 410
• Factory pressure tested for leaks at 300 psi, burst tested at 450 psi, ambient temperatures.
• 20 gauge galvanized sheet metal casing with 18 gauge end plates
• “Slip & Drive” connection provided for metal discharge duct connection
• Connections are male solder headers.

Same as Model QSTS plus:

• Right hand or left hand coil connection – factory configured
• Coil clean-out access door
• “Steam” construction available. Contact your local Anemostat representative.

Application

• Series type, fan assisted air terminal with integral electric heating coil
• Provide electric resistance heating to perimeter spaces during occupied periods and night cycling temperature control with central fan systems shut down

Same as Model QSTS plus:

• Integral electric heating coil with nickel-chrome resistance wire
• Primary, auto reset thermal cutout
• Fan interlock relay for proof of air flow
• 24vac Class II transformer (unfused) as required for 24vac control systems
• PE switches for pneumatic control systems
• Magnetic de-energizing contactor per step
• Accepts flanged discharge duct connection
• Left hand control and heater cabinet position are standard

Same as Model QSTS plus:

• Door interlocking disconnect switch, non-fused
• Air flow switch in lieu of fan interlock relay
• Power fusing (fuses & fuse blocks)
• Manual reset secondary thermal cutout
• SSR modulating controller
