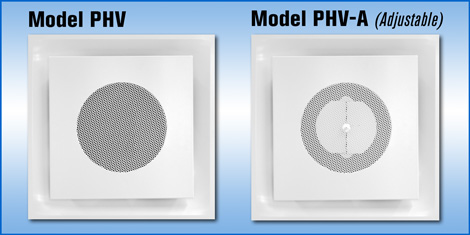

  Model PHV - Combination Horizontal / Vertical Pattern Diffuser

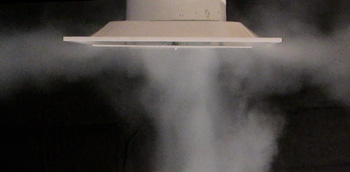

Air Pattern Video
Application
  • Model PHV ceiling supply air diffuser with a combination air diffusion pattern engineered for both a 360° horizontal air pattern delivery tight to the ceiling (60%) AND a vertically projected jet towards the occupied zone (40%).
    Model PHV-A ADJUSTABLE ceiling supply air diffuser includes a pattern controller that can change the proportion of horizontal and vertical capacities from 60%/40% to 85%/15%.
  • Ideal for large floor-to-ceiling distances found in industrial spaces, retail malls, theaters/auditoriums, convention centers, etc.
  • Recommended for constant or variable air volume projection heating,  spot cooling, or general ventilation.
  • Models available for surface mounting, exposed duct, or any suspended grid systems
Product Features
  • Center plaque has smooth, hemmed edges for rigidity and flat appearance with a perforated center opening.
  • Steel construction.
  • Smooth outer cone is die stamped (no mitered corners) and contoured to minimize sound and pressure loss.
  • Removable plaque assembly without use of tools.
    4 posts interlock into outer cone.
  • Arctic White powder coat finish.
Options
  • Aluminum, or stainless steel construction.
  • Model B5 blank-off baffles for directional control from 4-way to 3, 2, or 1 way horizontal blow – field installed.
  • Custom or optional paint colors.
  • Model VD butterfly volume control damper.
  • Model TBF auxiliary mounting frame for hard / plaster ceilings.


Typical
Specification
Model PHV-A




Submittals
Model Features Mounting
Size
24" x 24"
PHV-L Horizonal / Vertical Pattern Lay-In T-Bar
PHV-D 9/16" Narrow Slot
PHV-F Surface Mounted
PHV-T Tegular
PHV-H Metal Pan (Snap-In)
PHV-A-L Horizonal / Vertical Pattern

Adjustable Vertical Projection

Lay-In T-Bar
PHV-A-D 9/16" Narrow Slot
PHV-A-F Surface Mounted
PHV-A-T Tegular
PHV-A-H Metal Pan (Snap-In)

Accessories
VD - Butterfly Volume Control Damper
TBF - T-Bar Mounting Frame
LD - Combo Louver Damper
CED - Equalizing Deflector
R6 - Molded Insulation Blanket
B5 - Blank-Off Baffles
