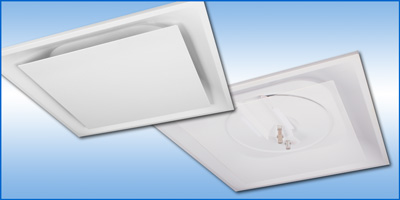

Model AT - AnemoTherm VAV Diffuser |
|
| |
|
|
|
| |
Application
- Intelligent VAV Plaque style diffuser with integral room thermostat and VAV damper
- Cooling (Model ATC) or Auto Heating-Cooling Changeover (Model ATHC) configurations
- Independent VAV zone control – easily retrofit existing, problematic multi-zone systems
- Eliminates comfort complaints associated with multi-zone applications due to non-uniform loading and lack of personal comfort control
- Architecturally preferred diffuser appearance without sacrificing performance
- For surface mounting or use with suspended grid systems
Product Features
- Model ATC for cooling only applications
- Model ATHC for automatic VAV cooling (<68° F supply air temperature) and VAV heating (>78° F supply air temperature) applications.
- No special installation requirements
- VAV damper is spun, corrosion resistant aluminum with perimeter seal
- “Easy Adjust” thermostat located behind removable plaque. Adjustment range is 72-78° F. No tools required. Factory set at 74° F.
- 360° air pattern delivery at high discharge velocity maintains coanda effect even at low air flow rates
- Center plaque has smooth, hemmed edges for rigidity and flat appearance
- Steel construction
- Plaque is assembled without welding or heat – no blemishes
- Smooth outer cone is die stamped (no mitered corners) and contoured to minimize sound and pressure loss
- Removable plaque assembly without use of tools. 4 posts interlock into outer cone.
- Arctic White baked-on finish
- 10 year warranty
Options
- Aluminum, or stainless steel construction (VAV mechanism is constructed from coated steel components)
- Pressure control collar reduces system pressure by relief of supply air directly into the ceiling plenum
- Blank-off baffles for directional control from 4-way to 3, 2, or 1 way blow
- Custom or optional paint colors
|
|
|
 |
|
| Submittals |
| Model |
Application |
|
| ATC |
Cooling Only, Nominal 24 x 24
|
• |
| ATHC |
Heating & Cooling, Nominal 24 x 24
|
• |
| ATCR |
Cooling Only with Relief Collar, Nominal 24 x 24
|
• |
| ATHCR |
Heating & Cooling with Relief Collar, Nominal 24 x 24 |
• |
|
| |
|
|
|
|
