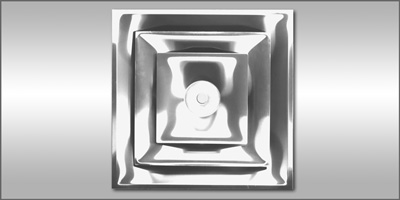

  Model E - Stainless Steel Square Cone Diffusers


Application
  • Harsh environments dictating stainless steel performance
  • Recommended for constant or variable air volume heating, cooling, or ventilating
  • 360° air pattern delivery maintains coanda effect even at low air flow rates and minimizes smudging
  • Surface mounted or suspended grid systems
Product Features
  • 304 Stainless Steel
  • Die stamped cones – no mitered corners
  • Uniform, 3 cone appearance regardless of neck size
  • Removable inner cone assembly without use of tools
  • Optional damper access through center hole with plug button
  • Satin polished finish on exposed surfaces
Options
  • 316 Stainless Steel
  • White paint
  • Model SSTBF auxiliary mounting frame for hard / plaster ceilings
  • Custom or optional paint colors
MRI Applications
  • All aluminum construction:
    Models: XE1-MRIXEPL-MRI

Model EPLA / E1-A
Adjustable Horizontal to Vertical Pattern

Application
  • Harsh environments dictating stainless steel performance
  • Recommended for constant or variable air volume heating, cooling, or ventilating
  • Field adjustable air delivery pattern from horizontal to vertical air projection for heating-cooling applications
  • 360° air pattern delivery maintains coanda effect even at low air flow rates and minimizes smudging in horizontal pattern setting
Product Features
  • 304 Stainless Steel
  • Die stamped cones – no mitered corners
  • Integral pattern deflectors rotate to adjust air pattern
  • Uniform, 3 cone appearance regardless of neck size
  • Removable inner cone assembly without use of tools
  • Optional damper access through center hole with plug button
  • Satin polished finish on exposed surfaces
Options
  • 316 Stainless Steel
  • White paint
  • Model SSTBF auxiliary mounting frame for hard / plaster ceilings
  • Custom or optional paint colors
MRI Applications
  • All aluminum construction:
    Models: XEPLA-MRI

Typical Specifications
