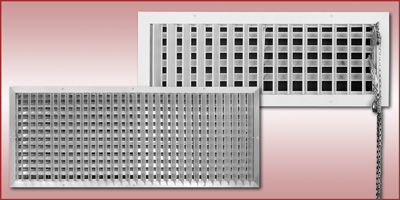

  Models XW/IS - Textile / Industrial Grilles


Application
  • Where rugged construction and high performance is required in industrial plants, paper & textile mills, food processing facilities, etc
  • Versatile double deflection air pattern control for throw and spread
  • Robust construction for air velocities to 3,000 fpm
  • Excellent for general ventilation, and spot heating and cooling
  • Worker adjustability for personal control of air direction and pattern
Product Features
  • Double deflection grilles to direct air precisely where needed
  • Heavy, all extruded aluminum, corrosion resistant construction for industrial environments
  • 1-1/2" long, double barrel blades withstand abuse
  • 1-1/2" blade spacing handles large air volumes with minimal pressure loss while minimizing collection of contaminants such as lint, dust, and or particulates
  • Registers include a factory attached, steel opposed
  • blade volume control damper
  • Mounting holes in frame neatly countersunk for supplied #8 x 1-1/2 oval head screws
  • Arctic white baked-on finish
  • Maximum size one piece construction is
    48" x 48". Model XIS over 24" high has second bank of blades split into two sections with two handles and two movement bars. Larger sizes shipped in multiple pieces for field assembly
Options
  • Model XISV includes gang operated rear blades for pole operation. Optional sash chain and pulley available upon request. Front blades are always vertical.
  • Factory applied gasket material to frame
  • Aluminum opposed blade volume control dampers
  • Custom or optional paint colors

Features at a Glance




Submittals
Model Features Supply
XW Double Deflection
IS Pole Operated
Chain Operated

Accessories
OBD - Opposed Blade Volume Control Damper
