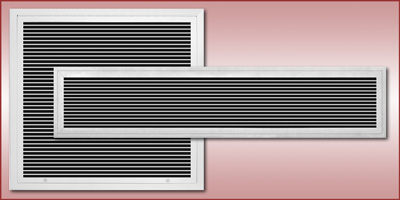

  Models R2/R3 - Rotacore Grilles & Registers


Model R2
Double Deflection Supply

Application

  • Recommended for constant and variable air volume heating, cooling, and ventilating
  • Sidewall, sill, or cabinet installation – blanketing large surface areas with conditioned air (not recommended for foot traffic)
  • Required adjustment flexibility - 4 discharge directions plus spread control
Product Features
  • “Rotatable” core can be field adjusted 4 different ways - 5° or 15°, up or down, providing air directional control for the specific application
  • Blades on 1/4" centers, vertical support bars are on 5" centers
  • Second set of blades double the deflection and provide spread control
  • Durable extruded aluminum construction
  • Concealed fastening thru neck of grille – No exposed screws
  • Registers include a factory attached, steel opposed blade volume control damper
  • Arctic White baked-on finish
  • Maximum size is 48" x 48" in one piece construction. Sizes over 48" are shipped in multiple sections for field assembly.
Options
  • Model RC removable core frame
    (visible mounting screws thru XR2 border)
  • Silhouette finish – satin anodize frame and black core with satin anodize front edges, providing unique color contrast and high end appearance
  • Custom or optional paint colors
  • Factory applied gasket material to frame
  • Aluminum opposed blade volume control dampers

Model R3
Return

Application

  • Matching return air grille / registers for supply models XR2 & XR2 RC
  • Sidewall or floor - surface installation (not designed for foot traffic)
  • Can be used as single deflection supply air grille / register
Product Features
  • Blades on 1/4" centers, vertical support bars are on
    5" centers
  • Durable extruded aluminum construction
  • Concealed fastening thru neck of grille – No exposed screws
  • Registers include a factory attached, steel opposed blade volume control damper
  • Arctic White baked-on finish
  • Maximum size is 48" x 48" in one piece construction. Sizes over 48" are shipped in multiple sections for field assembly
Options
  • Model RC removable core frame
    (visible mounting screws thru XR3 border)
  • Silhouette finish – satin anodize frame and black core with satin anodize front edges, providing unique color contrast and high end appearance
  • Custom or optional paint colors
  • Factory applied gasket material to frame
  • Aluminum opposed blade volume control dampers

Typical
Specification

Optional Finishes

Submittals
Model Features Supply
R2 Double Deflection
R2 Double Deflection with RC Frame
Model Features Return
R3
R3 With RC Frame

Accessories
OBD - Opposed Blade Volume Control Damper
