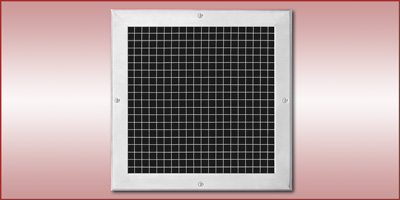

  Model GC - Stainless Steel Return Grilles


Application
  • Harsh environments dictating stainless steel performance
  • Recommended for general return or exhaust of room air
  • High free area offering lowest sound and pressure levels
  • “Egg Crate” construction similar in appearance to many lighting fixtures
  • Surface mounted or suspended grid systems
Product Features
  • 304 Stainless Steel construction
  • 1/2" x 1/2" x 1/2" stainless steel grid core
  • 20 gauge frame
  • Registers include a factory attached, face-operated stainless steel opposed blade volume control damper
  • Mounting holes in frame neatly countersunk for supplied stainless steel oval head screws
  • Satin polished frame. Core is 2B mill finish.
  • Maximum size one piece construction is
    48" x 48". Larger sizes available.
Options
  • 316 Stainless Steel
  • White baked-on paint
  • Custom or optional paint colors

Features at a Glance




Submittals
Model Mounting Material
Stainless Steel
GC5 Surface Mounted
Lay-In T-Bar
