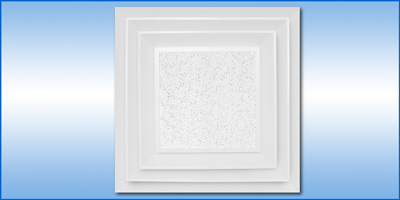

  Model TM - Ceiling Tile Diffuser


Application
  • Supply air diffuser for Architects who prefer maximum integration of air outlets with the ceiling system – diffuser accepts ceiling tile to match grid system
  • Recommended for constant or variable air volume heating, cooling, or ventilating
  • Nominal 24 x 24 module size
  • Lay-in T-bar or 9/16" narrow slot suspended grid systems
Product Features
  • Full-faced diffuser with no visible border
  • 1, 2, 3, or 4 perimeter slots
  • 4 way discharge pattern
  • Aluminum construction for maximum corrosion protection
  • Includes integral, steel square to round duct adapter for easy flex duct connection
  • Removable inner assembly, without tools, for tile installation and optional volume damper adjustments
  • Arctic White baked-on finish – entire assembly
Options
  • Blank-off baffles for directional control from 4-way to 3, 2, or 1 way blow – factory installed.
  • Optional Anemostat colors
  • Custom color matching
  • Model VD butterfly volume control damper
  • Model TBF auxiliary mounting frame for hard / plaster ceilings

Features at a Glance




Submittals
Mounting
Lay-In T-Bar
9/16" Narrow Slot

Accessories
VD - Butterfly Volume Control Damper
TBF - T-Bar Mounting Frame
LD - Combo Louver Damper
CED - Equalizing Deflector
