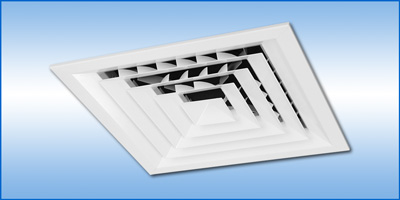

  Model HPX - High Performance Induction Diffuser


Application
  • High performance induction diffuser with superior mixing resulting in high levels of thermal comfort in the space
  • Versatile supply air diffuser for constant or variable volume heating, cooling, or ventilating
  • Directed air diffusion for space coverage with great flexibility in space layout and geometry, and diffuser location
  • Installation for hard ceilings or suspended grid systems
Product Features
  • High performance core design with integral induction vanes and “reduced lip” for increased induction and mixing ratios of supply and room air, while reducing NC and pressure levels
  • Square (up to 36” x 36”) and rectangular
    (up to 24” x 48”) neck sizes in 3” increments
  • (5) Application specific air distribution patterns – 1 way, 2 way opposite, 2 way corner, 3 way, and 4 way
  • Removable / Interchangeable cores for cleaning or changing air distribution needs, without tools
  • Concealed core attachment – NO screws
  • Arctic White baked-on finish
Options
  • Steel or aluminum construction
  • Steel or aluminum opposed blade volume control damper (Model DOB)
  • Square to Round duct adapter (Model SRA)
  • Square to Square duct adapter allows for supply duct to insert INSIDE diffuser neck to assist in a leak-tight installation (Model SSA)
  • Equalizing Deflector to provide uniform air flow
    (Model DED)
  • T-bar frame adapter (Model TBF)
  • All aluminum construction for MRI applications

Typical
Specification




Submittals
Model Features Mounting
HPX-L Extensional Panel Lay-In T-Bar
HPX-S Flat Outer Frame Surface Mounted
HPX-B Beveled Outer Frame Surface Mounted
HPX-D   9/16" Narrow Slot
HPX-L-RT Roto-Throw with
Extension Panel
Lay-In T-Bar
HPX-D-RT 9/16" Narrow Slot

Accessories
SRA - Square to Round Adapter
DOB-1 Opposed Blade Volume Control Damper for D-Diffusers
TBF - T-Bar Mounting Frame
ED - Equalizing Deflector
