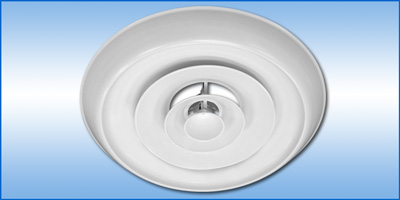

  Model C-24 - Adjustable Discharge Diffuser with Anti-Smudge Deep Outer Cone


Application
  • Recommended for heating, cooling, ventilating, and projection heating
  • Manually adjustable air pattern for a “draftless” horizontal pattern or vertically projected pattern
  • Efficient air distribution in cooling applications at temperature differentials as high as 30° F.
  • Up to 20 air changes per hour (ACH)
  • 360° horizontal air delivery pattern
  • Surface mounted or exposed duct
Product Features
  • Steel, adjustable diffuser
  • Turning small inner cone raises or lowers inner cone assembly effecting a pattern change
  • Deep outer cone design minimizes smudging and cleaning / repainting expense
  • Deep outer cone provides unobstructed air flow patterns near ceiling or structural projections
  • Ceiling opening is only 1” larger than neck diameter
  • Minimal vertical space required between duct and ceiling
  • Arctic White baked-on finish
Options
  • Aluminum construction
  • Custom or optional paint colors

Typical
Specification




Accessories
VD - Butterfly Volume Control Damper
LD - Combo Louver Damper
CED - Equalizing Deflector
