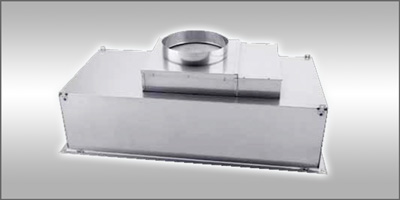

  FFU-2 - Fan Filter Module


Application
  • Fan-powered laminar flow diffuser with room-side replaceable, high efficiency filter provides exceptionally clean air for critical spaces.
  • Use with ducted systems or non-ducted applications.
  • Unidirectional column of clean minimizes mixing of room air with filtered, clean supply air.
  • Electronically commutated motor (ECM) provides highly efficient air movement while maintaining pressure independent, constant volume airflow even as the filter loads up over time.
  • Easily integrated into the building management system or for use with remote controls.
Product Features
  • Perforated face 3/16” diameter holes on 1/4" staggered centers (51% free area), #4 satin polish finish
  • All-welded 304 Stainless Steel construction
  • Room-side replaceable filter
  • Removable face assembly for cleaning, secured by 1/4 turn fasteners
  • Efficient EC motor is digitally controlled to provide constant airflow as the filter loads
  • Digital controller displays airflow in CFM
  • Expanded aluminum pre-filter is easily cleaned
  • Safety cables secure face from accidental dropping
  • Integral Earthquake hanger tabs
  • Designed for both lay-in T-bar suspended ceiling systems or hard surface mounted installations
  • Filters are constructed of anodized aluminum extruded housings with integral test ports
  • Filters shipped separate for field installation
Options
  • Type 316 Stainless
  • Rectangular and Oval Duct Openings
  • HEPA Filter (99.99% on 0.3 µm)
  • ULPA Filter (99.9995% on 0.12 µm)
  • LED Indicator Light – alerts user to change filter
  • Baked Epoxy-Polyester Hybrid Powder Coat Finish Available
